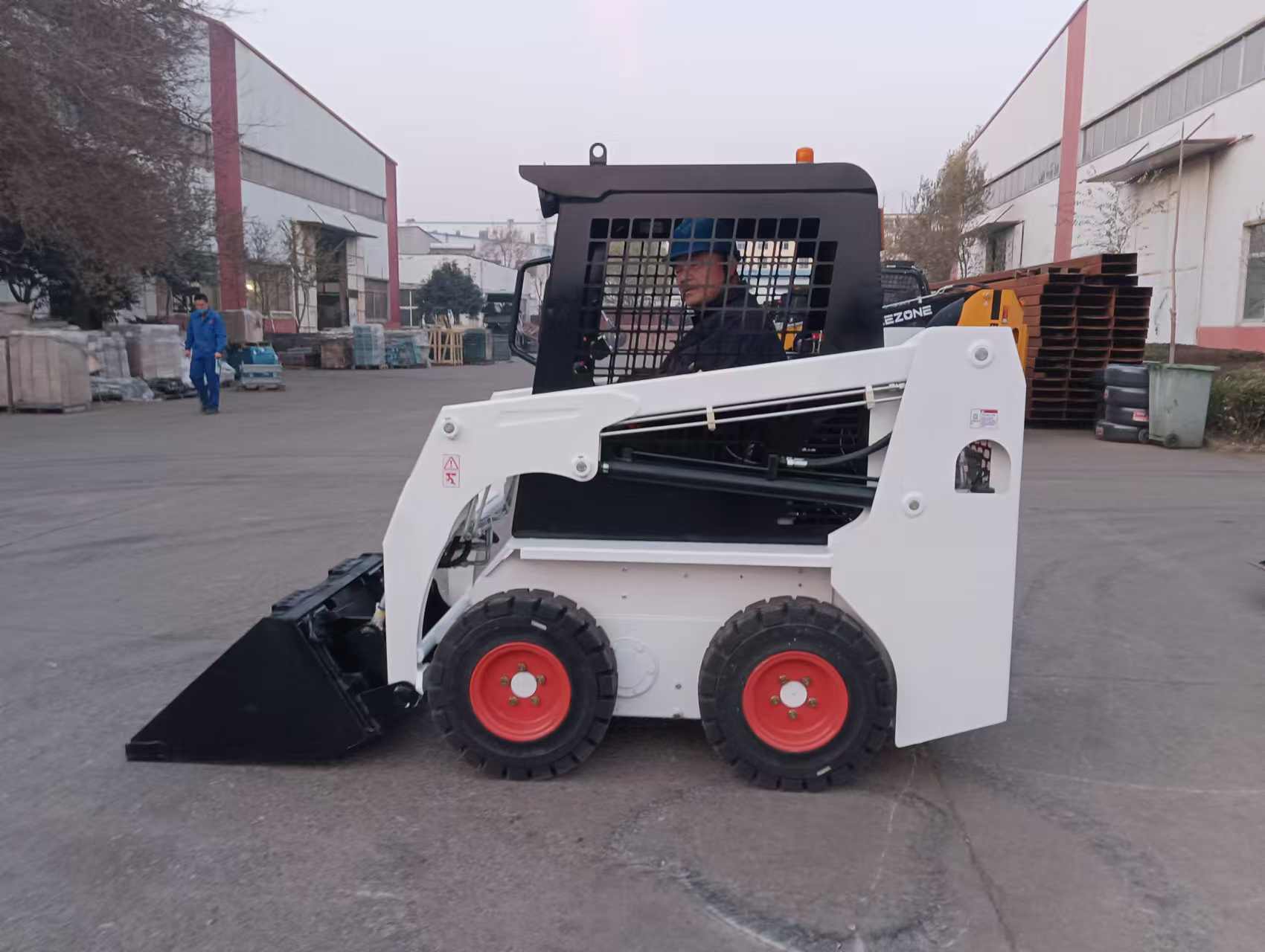

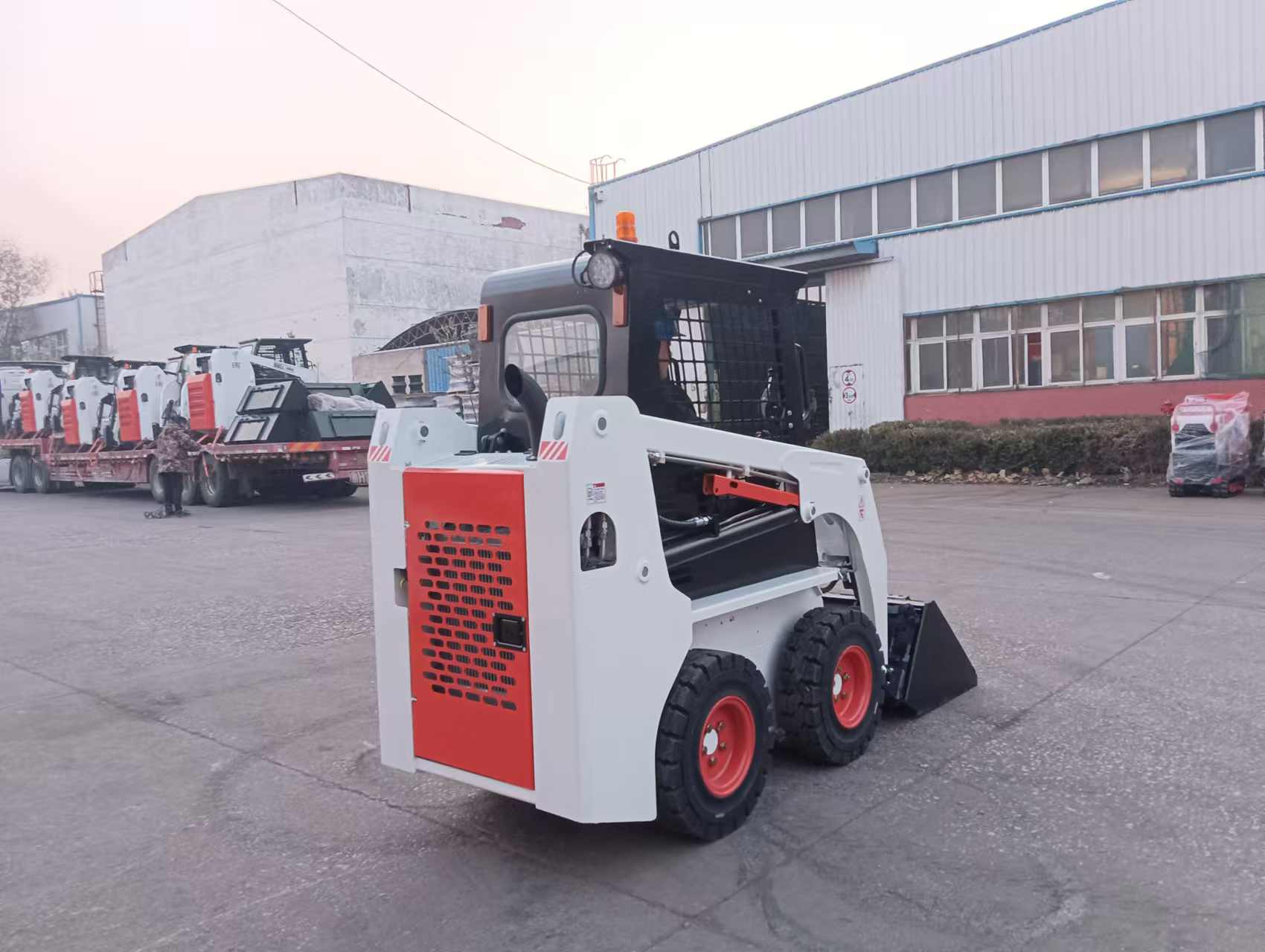

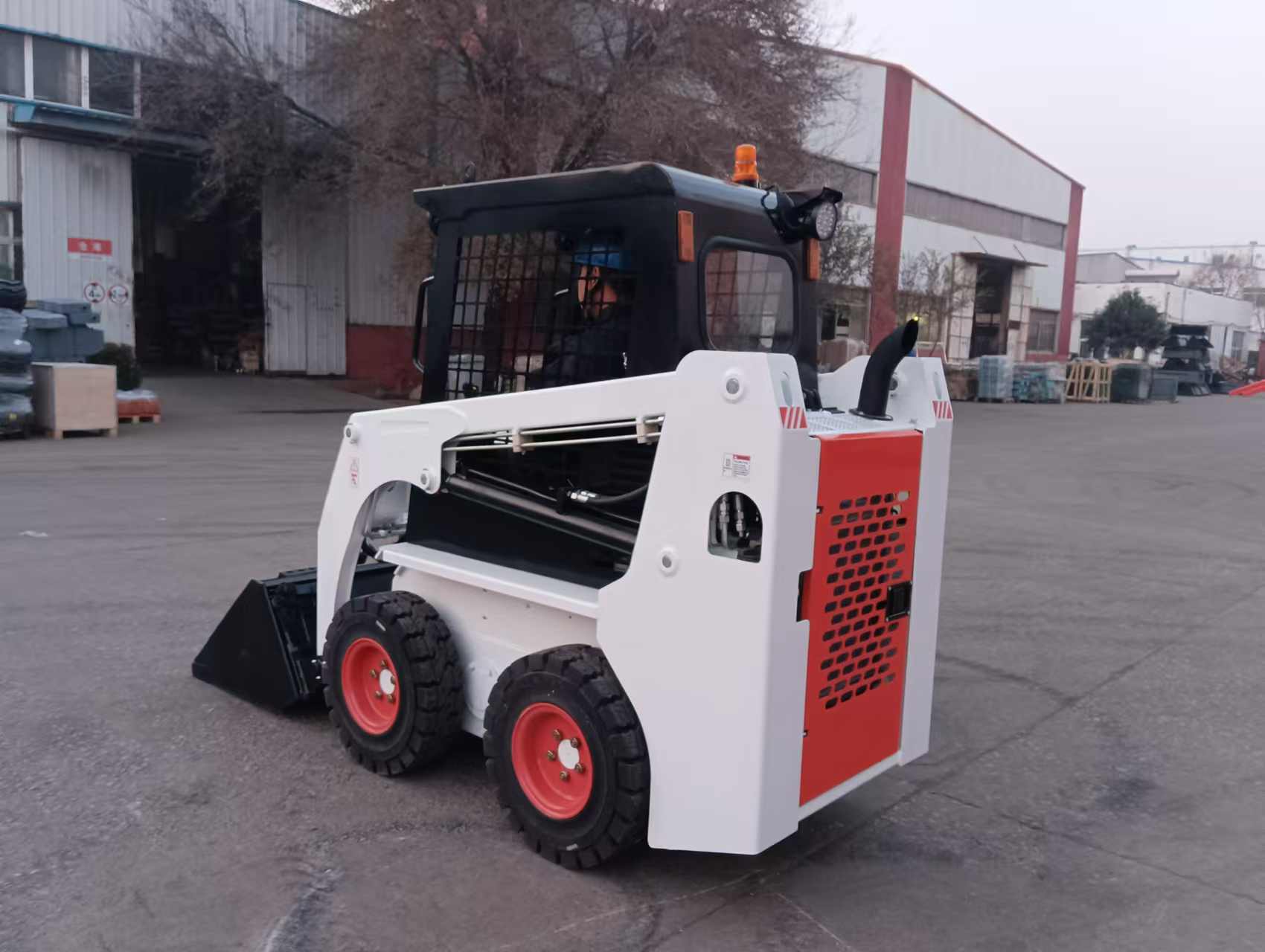

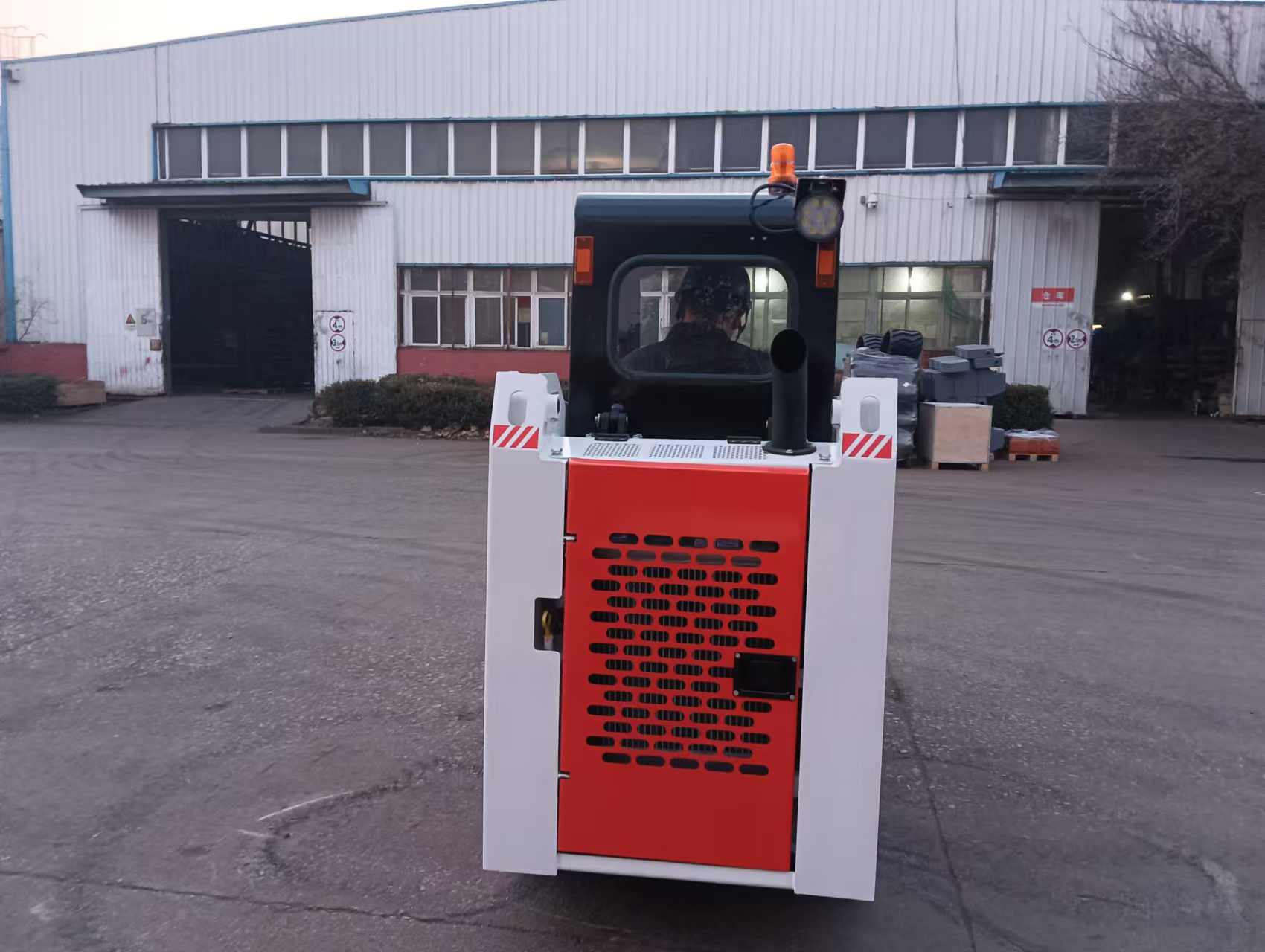

JC25C/35C Skid Steer Loader

 u      Compact structure, maneuverablemovement suitable for narrow Space operation

 u      Open cabin with mechanicalcontrol system

 u      Double accelerograph control

 u      Multi-function with a widerange of attachments

 u      Hydraulic brake

This Wheel Loader can be equipped with optional quick hitch , and this quick hitch enables this Wheel Loader to change quickly among multiple attachments, such as four-in-one bucket, two-in-one bucket, grass fork, wood fork, pallet fork, V-shaped snow plow and snow bucket etc

  • Selling point
  • Configuration
  • Customer case
  • Relevant
We Accept:
JC25C/35C Skid Steer Loader

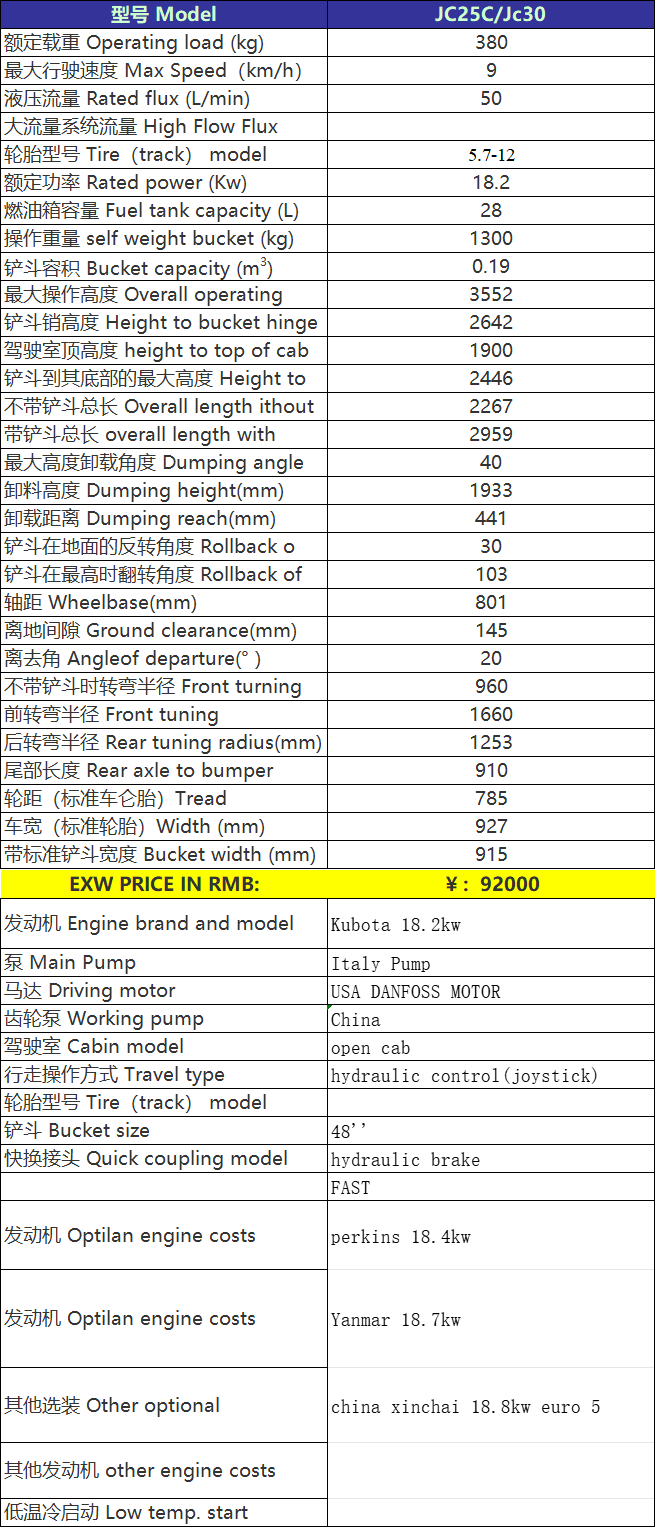

Product Paramenters
JC25C/35C Skid Steer Loader(图1)
Machine Specifications

Rated operating capacity(kg)
380
Tipping load(kg)
760
Bucket capacity(m3)
0.2
Operating weight(kg)
1300-1450
Max. travel speed(km/h)
9
Hydraulic pump flow(L/min)
50
Fuel tank capacity(L)
28
Tires
5.7-12
Overall dimensions(mm)
2959*927*1900
Dimensions

Height at maximum extension(mm)
3401
Height to bucket hinge pin(mm)
2642
Width with bucket(mm)
927
Track width(mm)
747
Wheelbase(mm)
801
Ground clearance(mm)
129
Dump angle
36°
Dumping height(mm)
1990
Maximum reach(mm)
419
Angle of departure
28°
Engine

Brand/Model
Kubota D1105-EF02
Net power
18.2kw/3000rpm
Displacement(L)
1.1
Standard Coonfiguration

Standard bucket
Open-type operator cab
